AFSA 2019

Thank you for visiting us in San Diego at Booth #101!


Product Spotlights for AFSA38 – 2019

The DDX PrePaK N2-Blast® System

FM Approved as a factory-assembled system

Available with Reliable® Preaction and Dry-Pipe Systems

  • 2” (50 mm), 2½” (65 mm), 3” (80 mm) and 4” (100 mm) valve sizes
  • DDX Type D preaction, DDX Type F preaction, or DDX-LP dry-pipe configurations

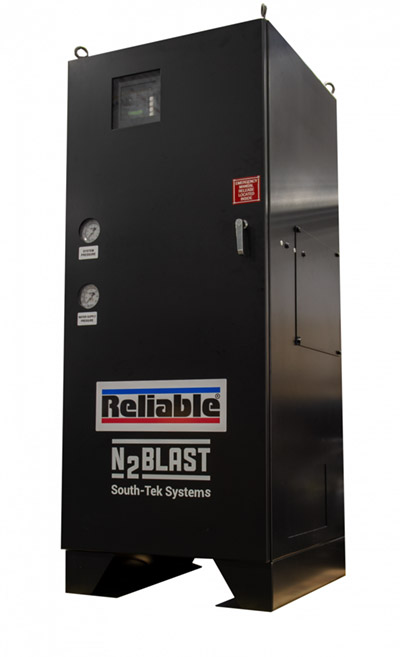

South-Tek N2-Blast® Model FPS-900-RS Nitrogen Generator

  • FM Approved nitrogen generator
  • Pressure Swing Adsorption (PSA) technology
  • System capacity up to 900 gallons
  • Includes AutoPurge System® vent

For more information click HERE.

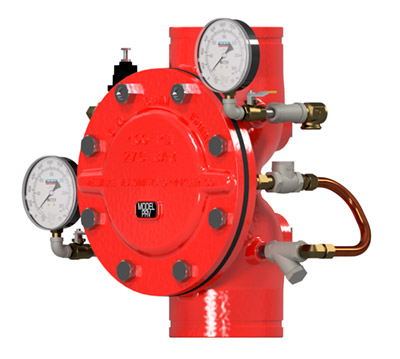

The Model PRV Pressure Regulating Valve

  • 400 psi (27.6 bar) rated pressure
  • Compact trim
  • No trim connections to valve cover
  • Pressure relief valve included with trim

 Available in 2-1/2” (65mm), 76mm, 3” (80mm), 4” (100mm), 6” (150mm), and 165mm sizes.

For more information see click HERE.


The Reliable Model DDV Deluge Valves

  • 2-1/2” (65mm), 3” (80mm), 76mm, 4” (100mm), 6” (150mm) & 165mm DDV Deluge Valves

Available Trim Options

  • Remote Resetting (on/off) [300 psi (20.7 bar)]
  • Remote Resetting (on/off) Pressure Regulating [400 psi (27.6 bar)]
  • Electric Actuation [175 psi (12.0 bar) or 300 psi (20.7 bar)]
  • Wet Pilot [400 psi (27.6 bar) – depends on pilot line detectors]
  • Dry Pilot [400 psi (27.6 bar)
  • Dry Pilot Pressure Regulating [400 psi (27.6 bar)

For more information see Click HERE.


Model AH42 and AH56 Attic Sprinklers

  • Industry leading attic sprinkler coverage, now for hip roofs
  • cULus Listed for protection of hip roofs
  • Coverage area of 10ft by 15ft

For more information please see Click HERE.


Wrench-able Caps for Flat Plate Concealed Sprinklers

  • Provided with Model RFCG5, and LT56C sprinklers.
  • Using the Model W3 wrench, sprinklers are installed without removing the protective cap.
  • Cap color indicates sprinkler temperature rating.
  • Cap can be removed with a standard 1/2″ NPT or BSPT threaded adapter on pipe.
  • Adhesive backed silicone disk available to create a cover plate installation tool.

Watch this video for more information.


Model AAV Automatic Air Vent

  • Reduce Corrosion in Wet Pipe Sprinkler Systems
  • Meets the requirement of NFPA 13 for a high point air vent on wet pipe sprinkler systems
  • Designed, built, and tested by Reliable
  • UL Listed & FM Approved for use on wet pipe fire protection systems
  • Stainless steel body construction and strainer limit corrosion within the vent
  • 175 psi & 300 psi pressure ratings

For more information please see Click HERE.


Model FCA Floor Control Assembly

  • Factory-assembled by Reliable and ready for installation
  • Uses standard, modular components
  • Includes riser check valve, water flow switch, control valve, test and drain valve, pressure relief valve, and system pressure gauge
  • Each segment can be rotated independently to fit in tight spaces
  • 2”, 2-1/2”, 3”, & 4” sizes

For more information please see Click HERE.


Reliable Model TD Test and Drain Valve

  • cULus Listed, FM Approved
  • A single handle, tri-position ball valve allowing both testing of the water flow alarm and draining of a wet-pipe fire protection system.

For more information, please see Click HERE.


Nitrogen Automatic Pressure Maintenance Devices

  • NS-ASAM is cULus Listed and FM Approved.
  • This product is designed for two separate nitrogen or air sources, and it automatically switches between the primary and secondary source.
  • This device provides flexibility for multiple applications.

For more information, please see Click HERE.


RASCOFLEX™ Flexible Sprinkler Hose with Fittings

  • Braided Hose Assemblies (UL Listed and FM Approved)
    and Unbraided Hose Assemblies (UL Listed).
  • Manufactured for installation on suspended ceiling grids
  • Designed for use in hydraulically wet, deluge, preaction or dry sprinkler systems per NFPA 13, 13R, and 13D guidelines

For more information Click HERE.
